Our feature rich lightweight, klettersteig (big volume) karabiner.

Hot forging allows us to optimise material for weight, strength and internal radius.

Anodized for corrosion prevention.

30kN rating makes it suitable for rigging and rescue operations.

24mm gate opening and large internal volume makes loading complex rigging systems easy even in difficult conditions and with gloves.

Keylock clean nose for snag free quick connection for ropes, slings and devices.

The karabiner fits well in the hand and its size makes for excellent, quick handling.

The Screwgate has traffic light STOP (red) GO (green) indicators on the gate allowing easy sighting of undone bezel closures on rigging.

CLICK HERE to find out what 'klettersteig' means

Screwgate - Non auto-locking gate which requires two actions to open, and is easy to use with one hand. Screwgates are suitable in systems where anchor points can be easily monitored and are unlikely to be affected by running ropes.

Triplelock - An auto-locking gate requiring three separate actions to open. Triplelock gates give extra security in complex rigging systems such as those featuring running ropes or remote anchor points.

Specifications:

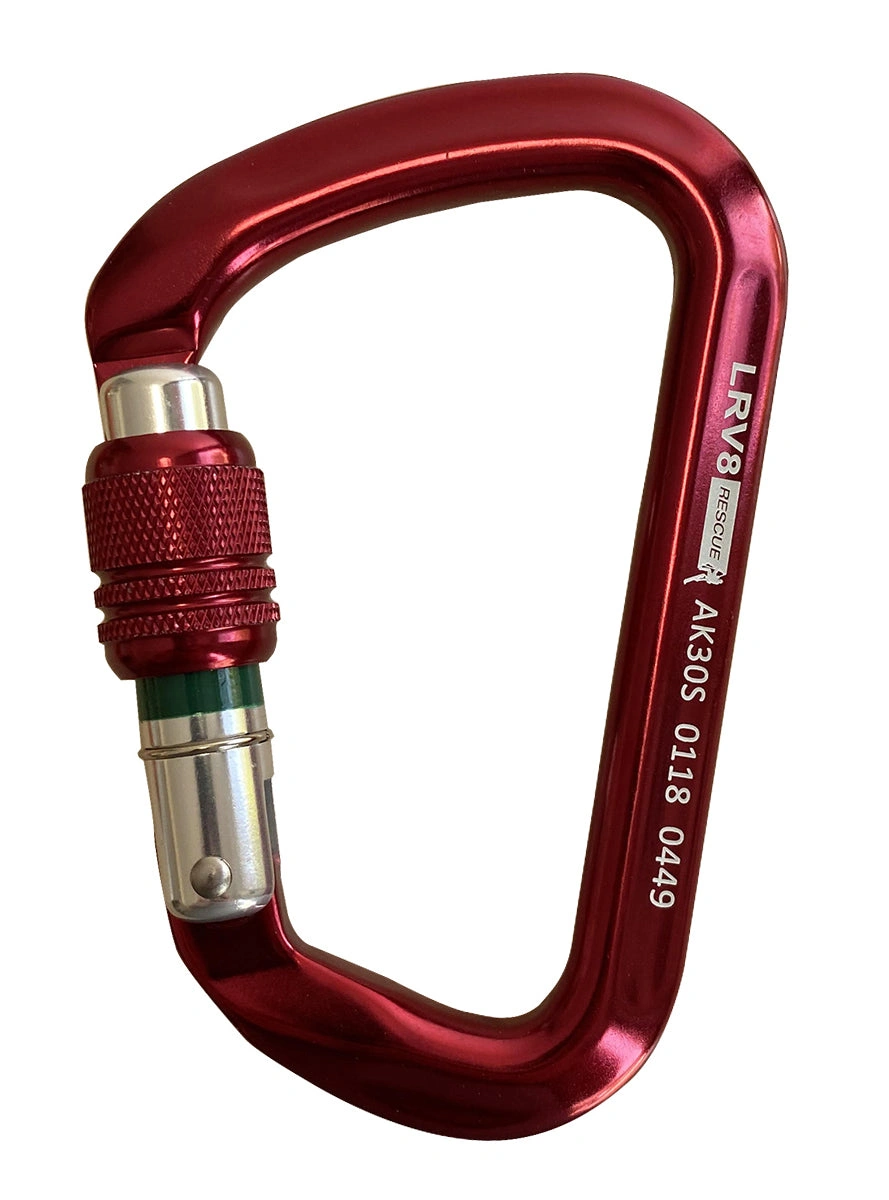

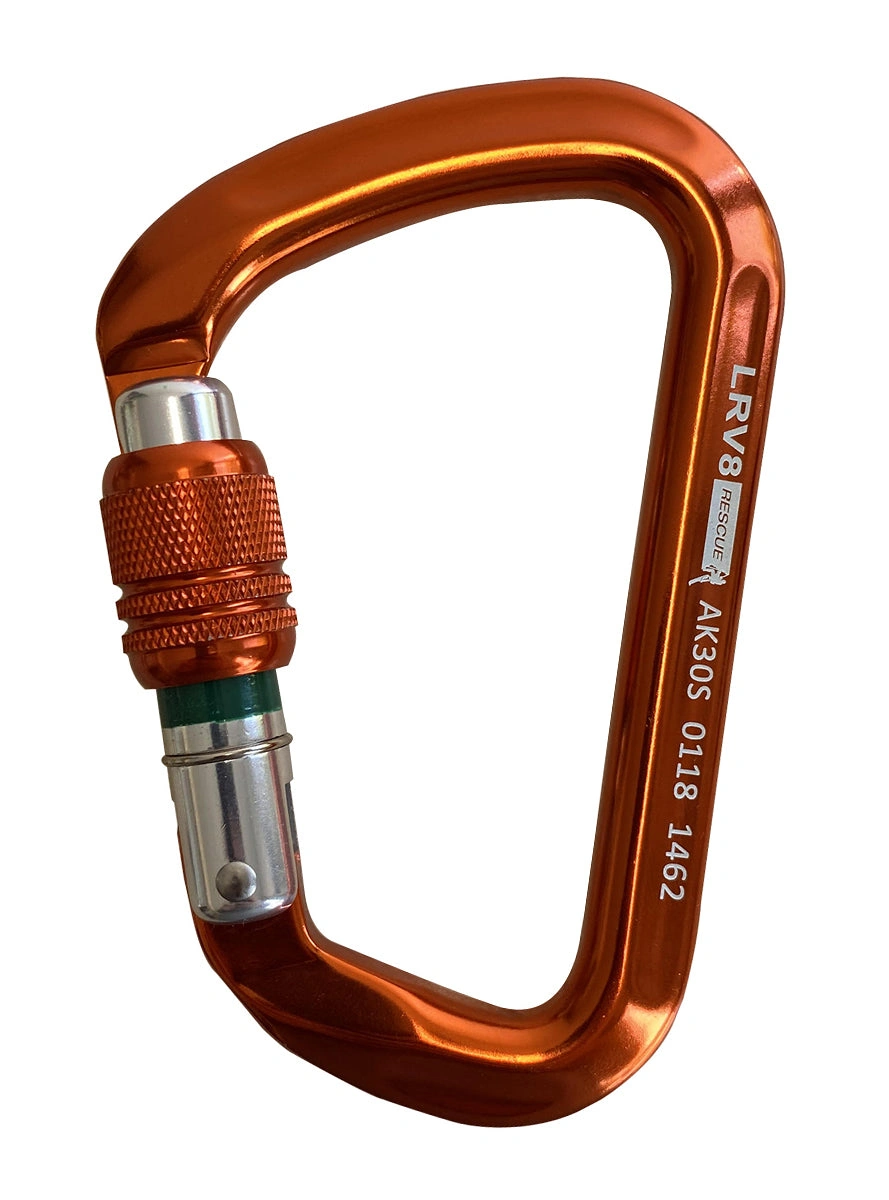

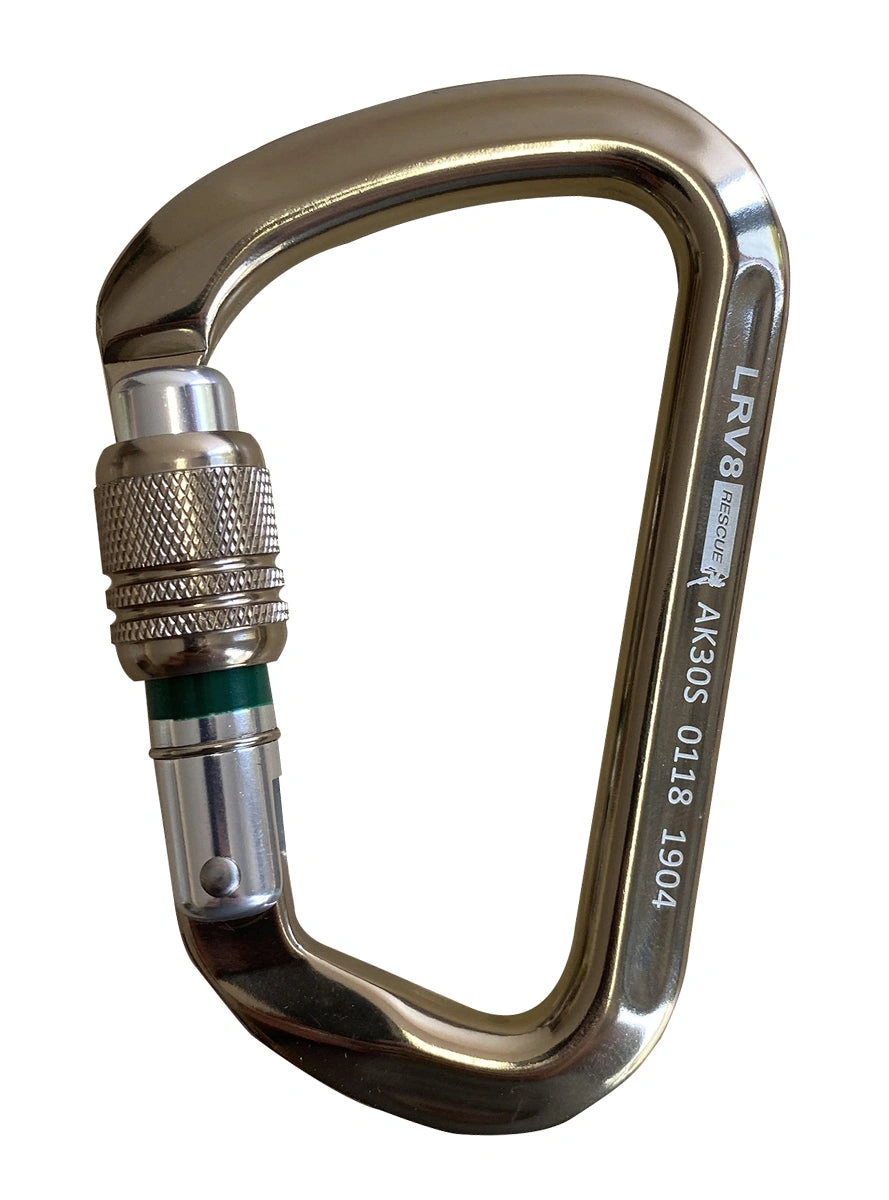

Product Code - Screwgate AK30S, Triplelock AK30T

Colour - Electric Blue, Orange and Red

Individual Serial Number – yes

Gate Options - Screwgate, Triplelock

MBS Major Axis - 30kN

MBS Minor Axis - 9kN

MBS Gate Open - 8kN

Dimensions - 72 x 110mm

Weight - Screwgate 77g, Triplelock 82g

Gate Opening - 24mm

Conformance - EN 12275:1998
