Tuotetiedot

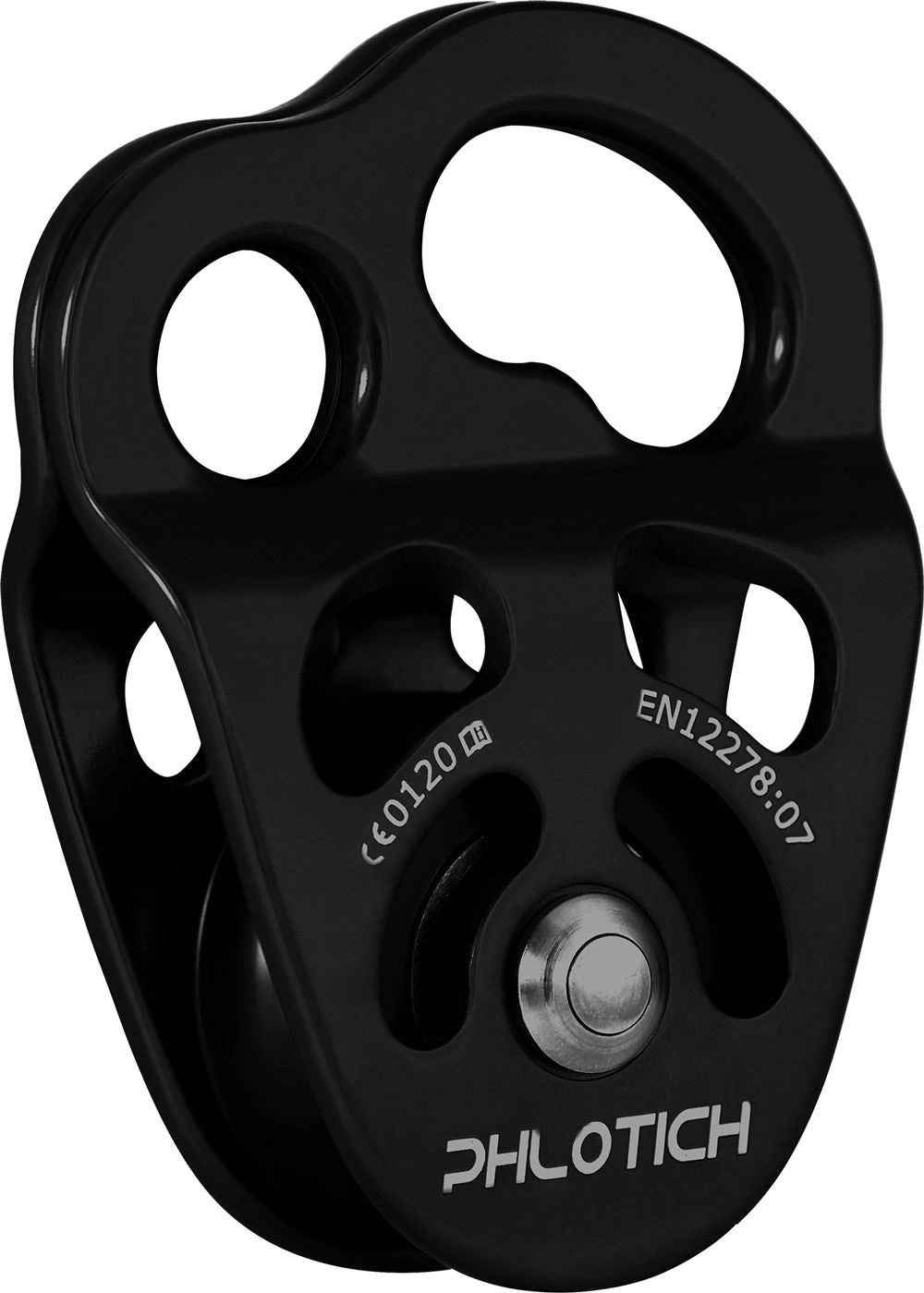

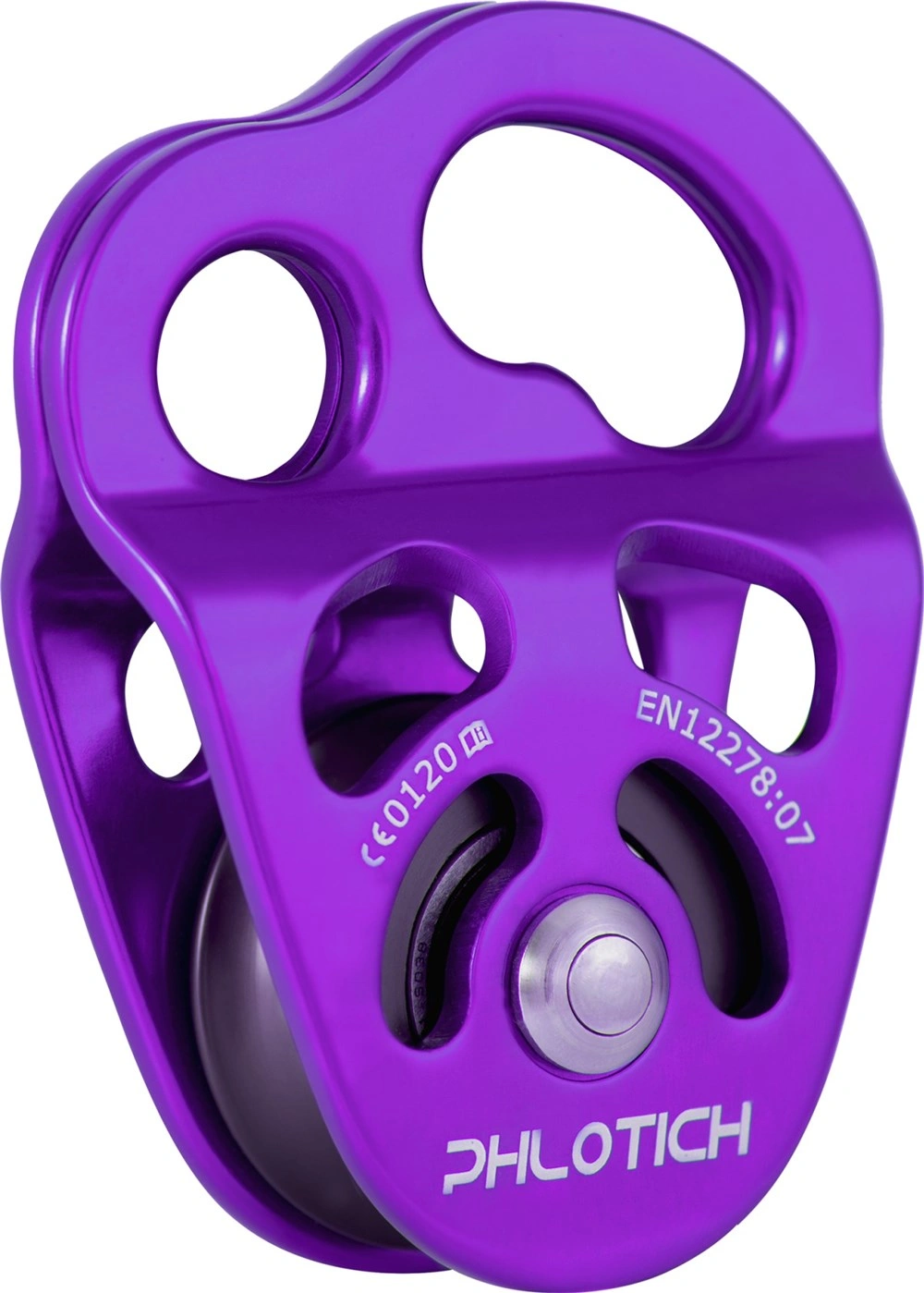

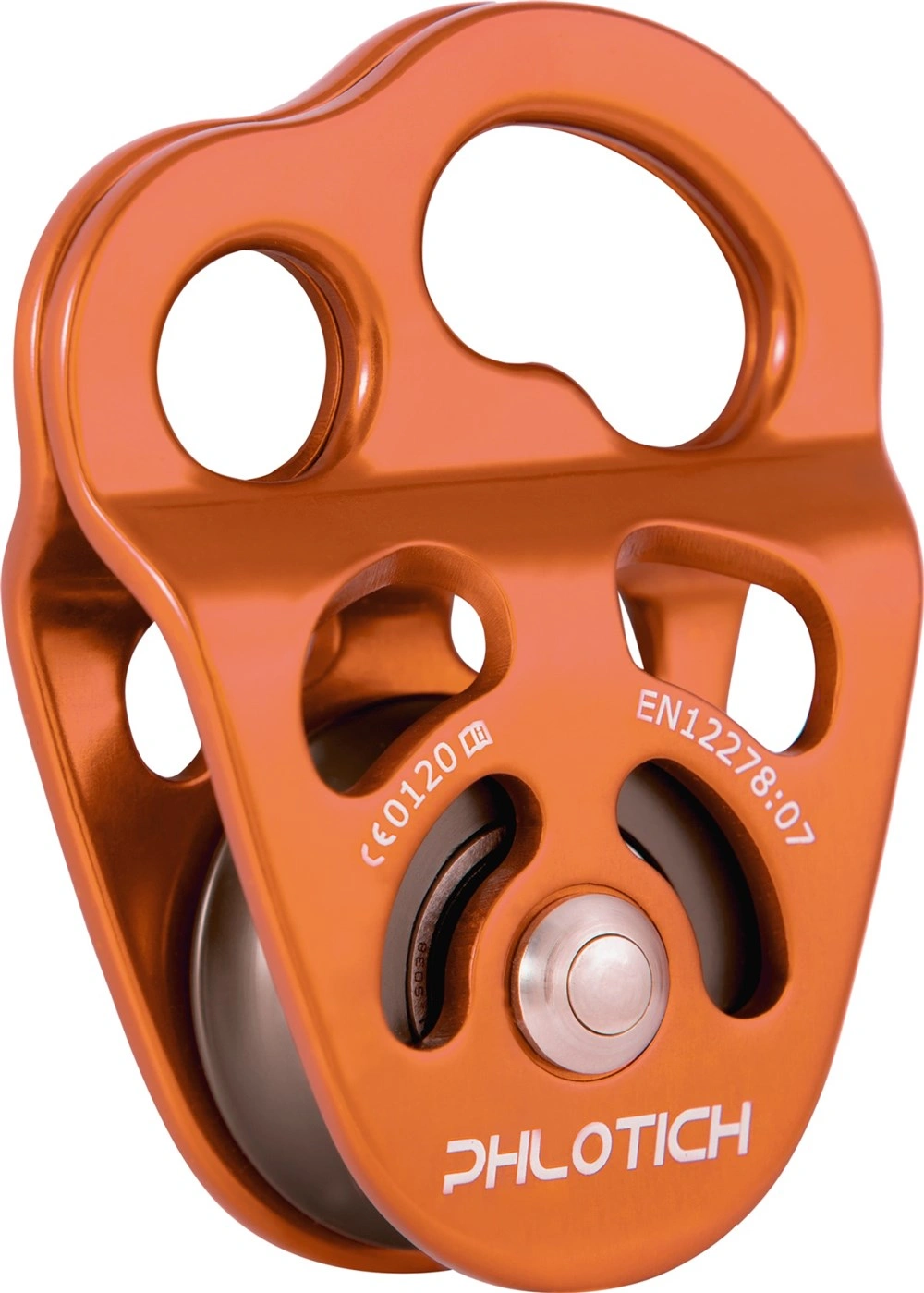

The Phlotich Pulley is a multi-aperture device specifically designed for SRT and DdRT.

The new Phlotich Pulley is available fitted with bushings or bearings.

Features & Benefits:
Profiled side plates capture the host line, allowing for a reduction in host line movement

Sideplates mate perfectly parallel allowing for a 'clean' connection to the anchoring Karabiners.  The mated sideplates also allow for seamless use of a 'Twin Leg' Tether in SRT climbing with a Rope Wrench.  This reduces clutter and allows proper alignment of the hitch, pulley and tether on the anchoring Karabiner (in a Rope Wrench set up)

Lower anchor aperture will allow for full Karabiner rotation

Dual Karabiner Alignment- when used with Doubled Rope Climbing, the Phlotich allows the two anchoring Karabiners to be aligned efficiently on one pulley, instead of separating to two separate anchors

Unique 'Kidney' aperture:

• allows for a wide variety of Karabiner connector shapes and will allow rotation of any Karabiner
• allows for multiple Karabiner connections at one time
• allows for a Karabiner to 'centre' itself depending on where the load is applied- and allows Karabiners to 'self centre' during climbing manoeuvers, which is helpful with DdRT climbing when climbing up to a 'large limb'
• allows for a perfect spot to anchor a 'Sternal' anchoring device (Karabiner, hook, Chestie, etc.) for use in SRT climbing on ascent with a Rope Wrench.  This connector in the 'Kidney' aperture will self align to the most efficient spot and can be removed and attached easily
• allow the efficient use of the Pulley as a 'trolley' and allows for self alignment of an anchoring Karabiner in the 'Kidney' aperture when used in this configuration.
• The Phlotich can be used effectively for 'Double Crotching' or setting up efficient mechanical advantage systems due to the multiple attachment points and the ability for multiple Karabiners anchored in the 'Kidney' aperture.

Technical Information

Rope diameter range (mm)Max 13mm (1/2')
(MBS) Minimum Breaking Strength (kN)30
(MBS) Minimum Breaking Strength (lbf)6744lbf
Serial numberingAs standard
Wheel materialAluminium
Body finishAnodised
Body colourn/a
May be servicedNo
Weight (grams)145
Weight (ounces)5

Approved Standards

EN12278:07
